PANCHSHEEL FASTENERS PVT. LTD.

" An ISO 9001 : 2008 Certified Company "

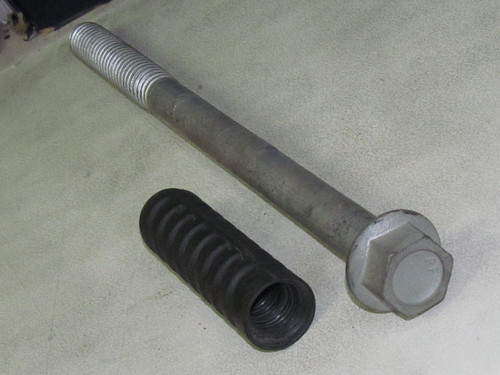

Segment Bolts
Segment Bolts

Segment Bolts

MOQ : 100 Pieces

Segment Bolts Specification

  • Head Type
  • Round
  • Surface Treatment
  • Galvanized, Polishing, Geomet
  • Usage
  • Industrial
  • Standard
  • ISO,CE.
  • Size
  • Customized
  • Grade
  • 5.8
  • Color
  • sliver Black



About Segment Bolts

Empowered by our our immense experience of almost 37 years in this domain, we are engaged in manufacturing and supplying supreme quality Segment Bolts. These bolts are used for fastening components to ensure a secure bond with machines. Proposed bolts are manufactured under the supervision of our dextrous professionals using the utmost grade raw materials and ultra-modern technology. Our offered products are also tested on defined quality parameters in order to ensure their flawlessness. These Segment Bolts are available in various finishes and dimensions as per the application requirements of clients.


Features:

  • Dimensional accuracy
  • Corrosion resistance
  • Application specific design
  • High strength and durability
  • In crawler equipment it help to secure the sprocket segments
  • Have min tensile strength of approx 170,000 lbf/in2
STANDARDS         DIN 6914 (for Bolts),.6915 (for Nuts), 6916 (for Washers)
IS 3757 (for Bolts), 6623 (for Nuts), 6649 (for Washers
BS 4395
ISO 7412 (for Bolts), 7414 (for Nuts), 7416  (for Washers)
PROPERTY CLASS: 8.8S/8S,  10.9S/10S
RANGE:  DIA M 16 TO  M 36
  LENGTH 40mm to 500mm
FINISH         * BLACKENED
* ELECTRO ZINC PLATED
* HOT DIP GALVANISED
* DACROTIZED
* GEOMET
PACKING   * BULK IN CARTOONS
* IN 50 KGS GUNNY BAGS
